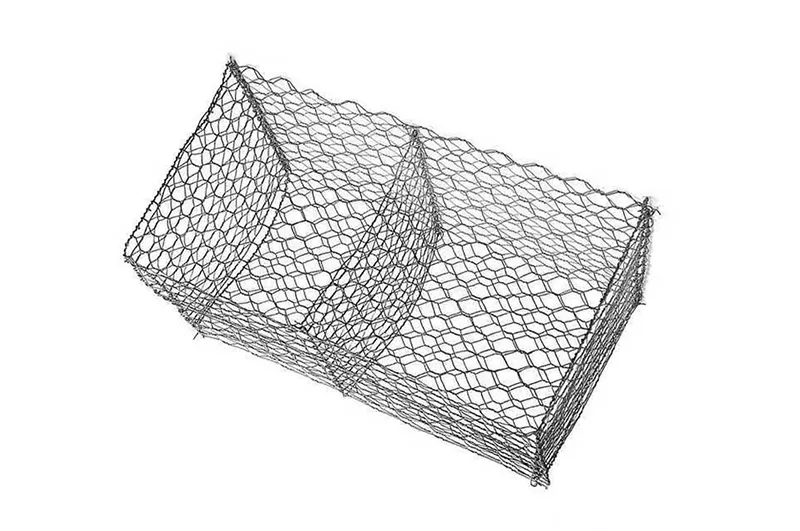

Woven Gabion, also called Wire Mesh Gabion, is a versatile and durable solution. Made by weaving galvanized steel or corrosion-resistant wire into a mesh, it’s strong and flexible. When filled with stones, it resists forces, adapts to terrain, serves practical functions like slope protection, and fits well with nature.
Woven Gabions are widely used in riverbank protection, slope stabilization, retaining walls, roadbed reinforcement, landscaping, ecological restoration, flood control, and coastal protection.
Specification

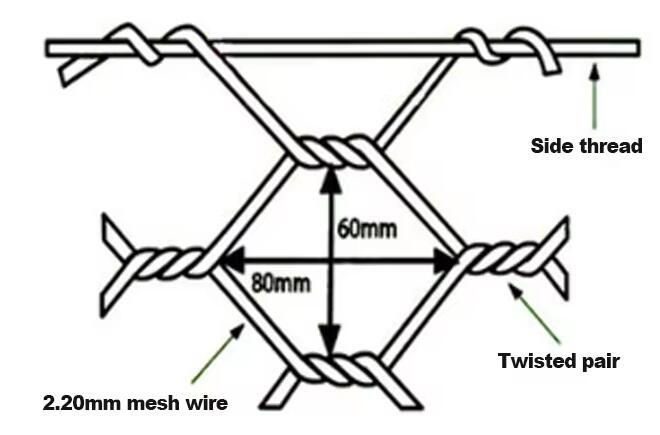

| Wire Diameter | Selvding Wire | Lacing Wire | Mesh Opening | Gabion Basket Size | Gabion Mattress Size | Surface Treatment |
| 2.0mm | 3-4mm | 2.0-2.2mm | 60x80mm | 2x1x0.5m | 3x2x0.3m | Hot dip galvanized |
| 2.2mm | 80x100mm | 2x1x1m | 4x2x0.3m | PVC coated | ||
| 2.4mm | 100x120mm | 3x1x1m | 5x2x0.3m | Galfan (zinc aluminum alloy coating) | ||
| 2.7mm | 120x150mm | 4x1x1m | 6x2x0.3m | |||
| 3.0mm | 4x1x2m | |||||
| 3.5mm | 4x2x0.3m | |||||
| 4.0mm | 6x2x0.3m |
