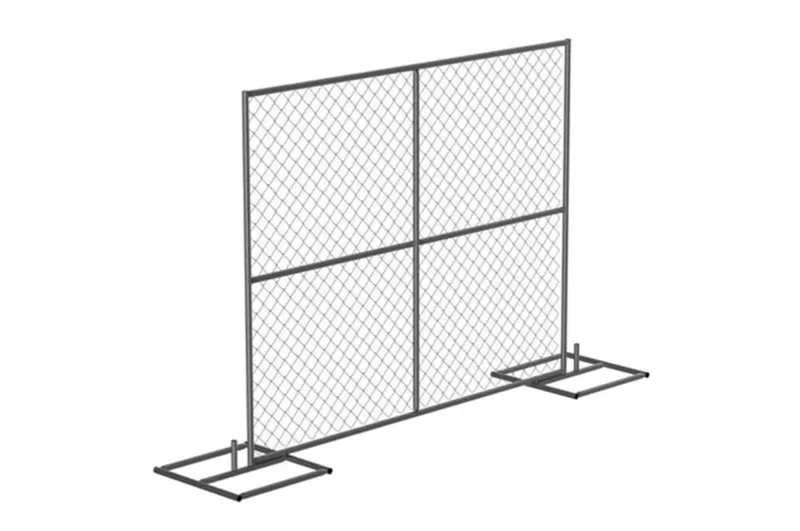

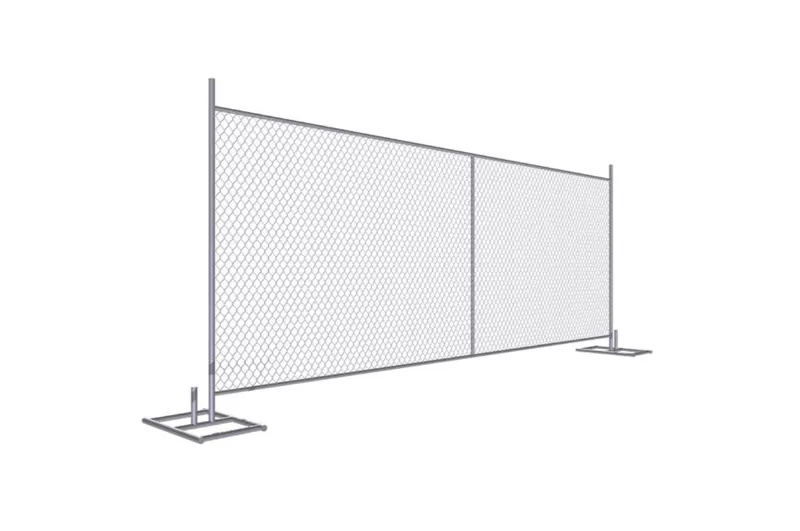

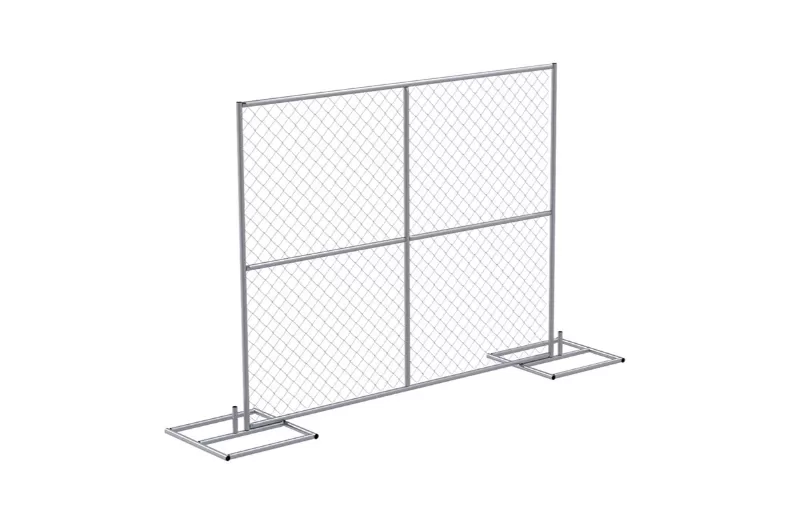

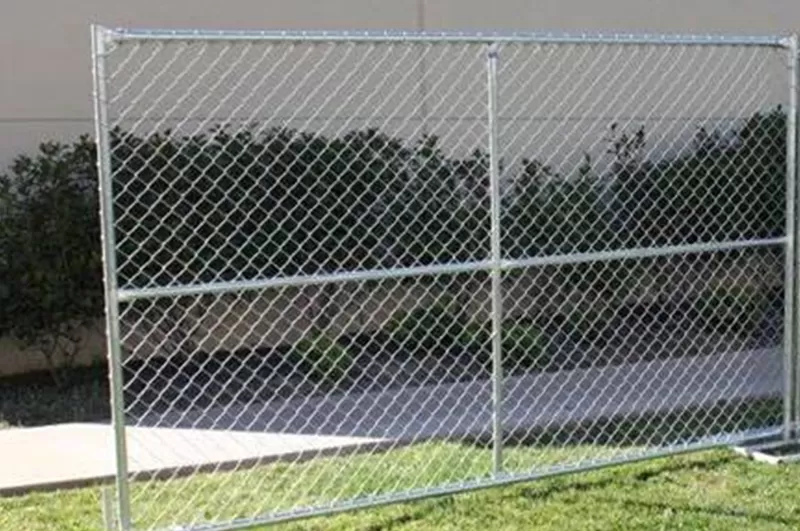

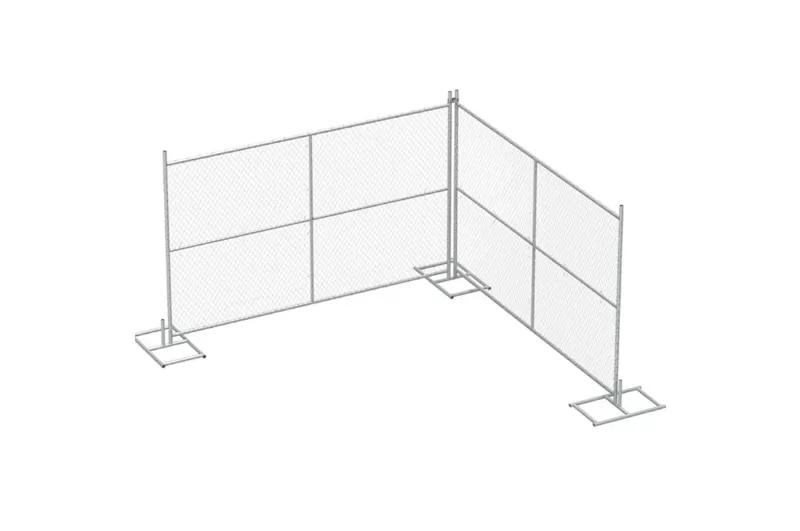

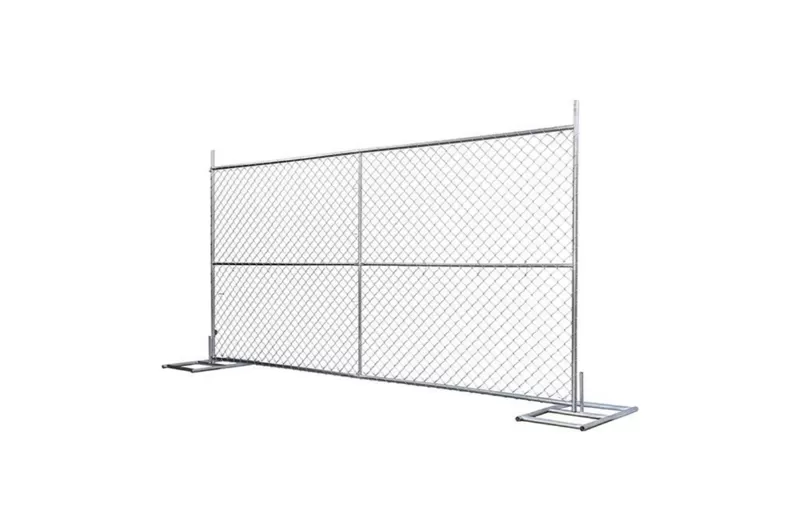

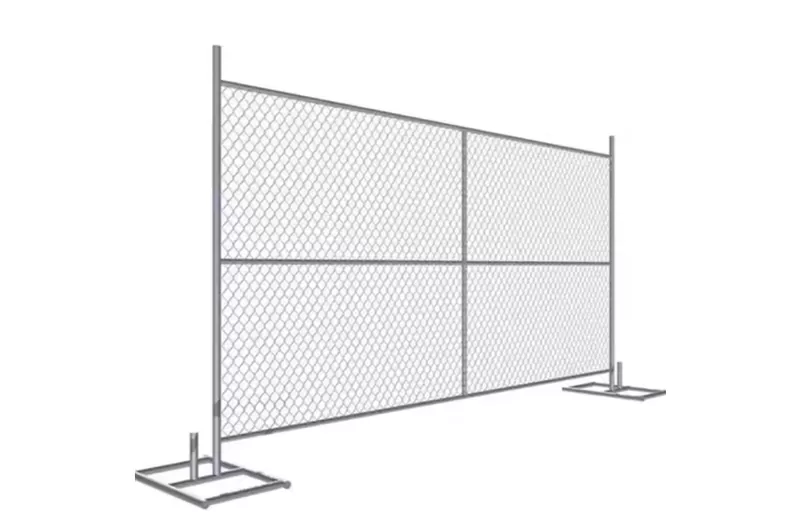

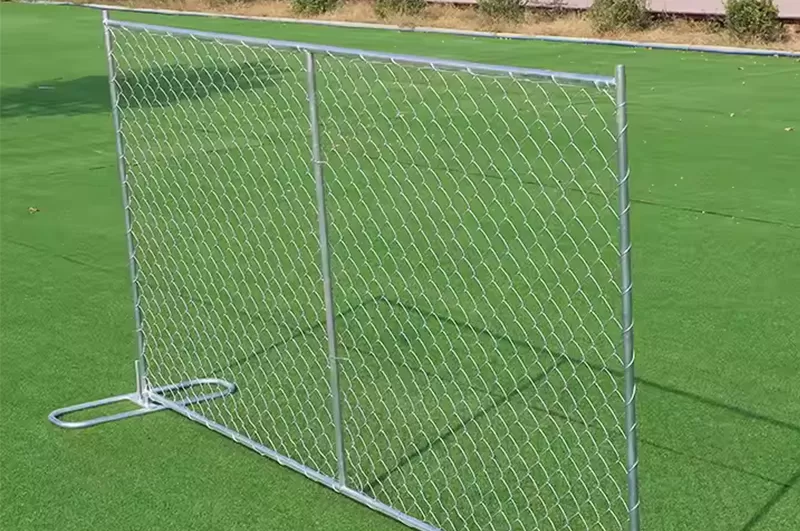

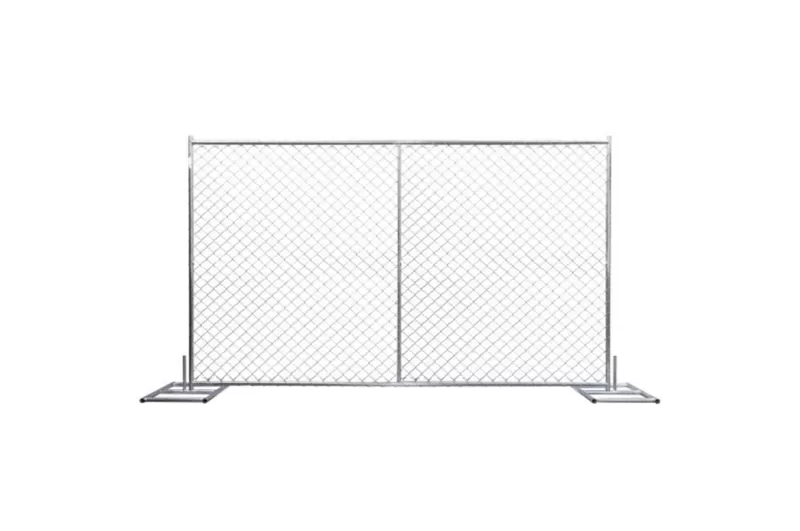

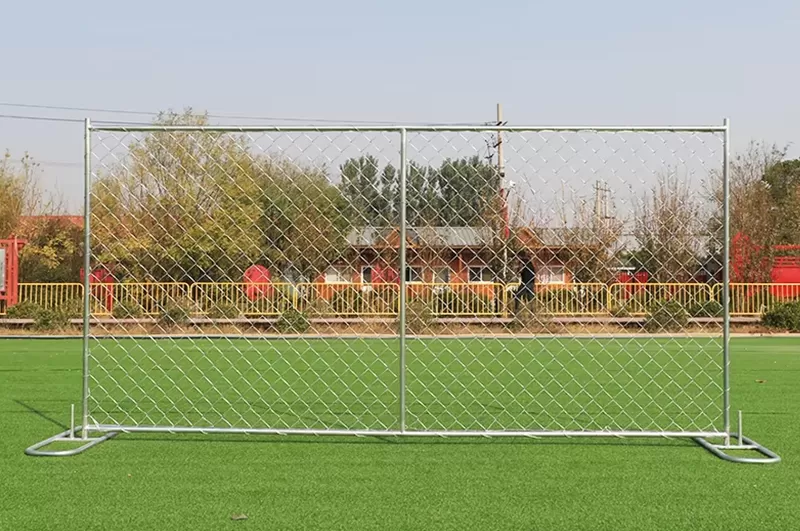

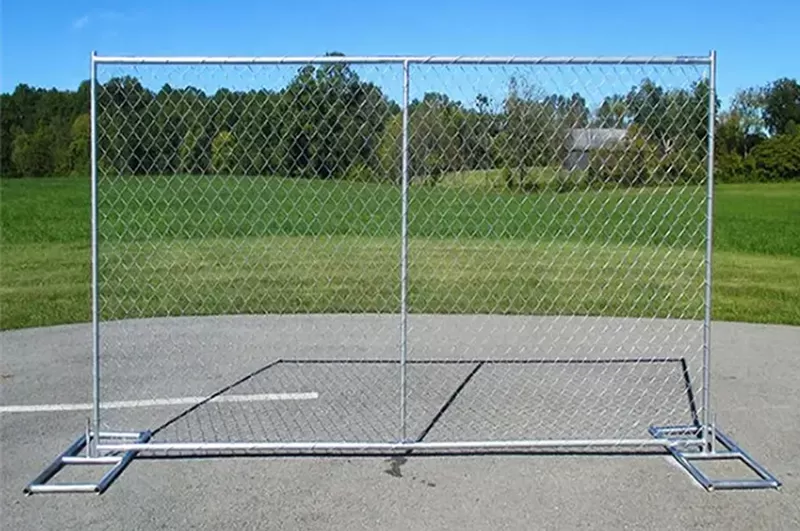

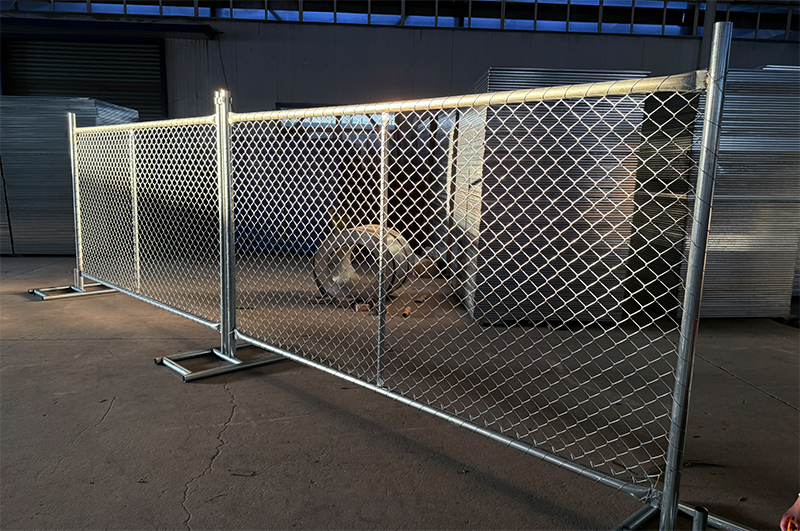

It is a common type of fencing that is mainly used for short-term containment and security management. Made from metal chain link, it offers good durability and corrosion resistance The frame usually consists of posts and beams, with the fence mesh pieces connected by metal rods to form a strong whole. Designed for quick assembly and disassembly, ideal for temporary use. The chain link design allows the line of sight to pass through the fence, ensuring better visibility, suitable for monitoring and maintaining security.
Application Scenario

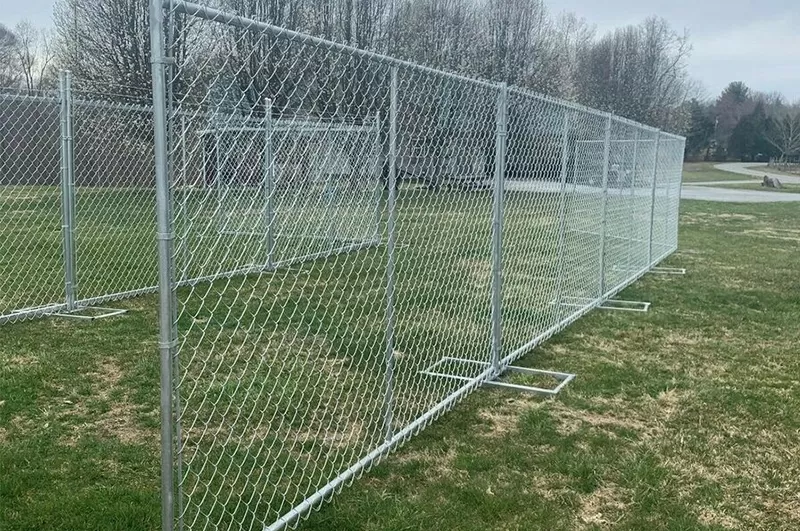

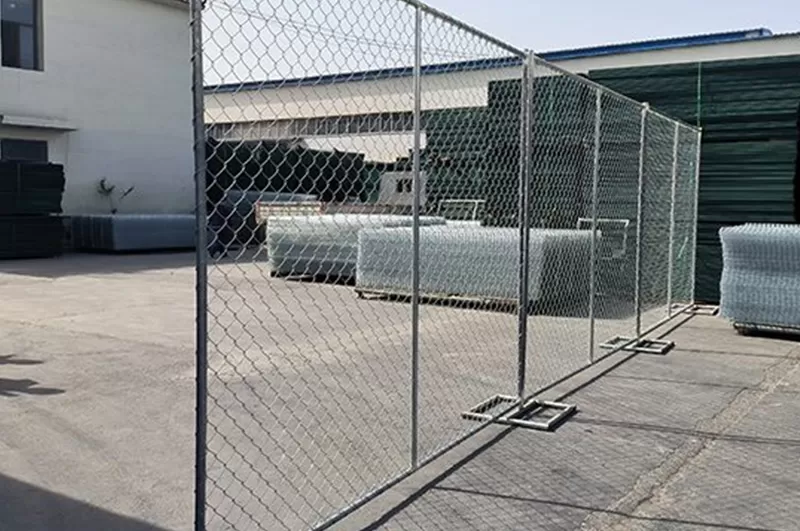

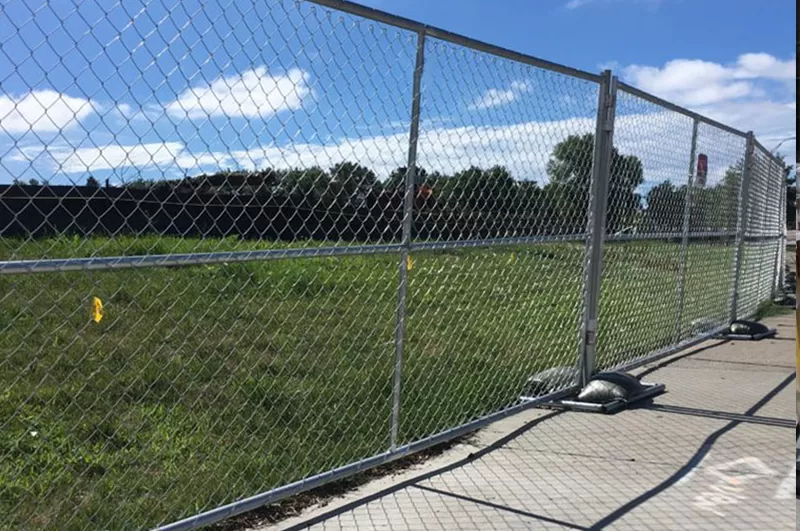

Construction sites and private property，residential housing sites，crowd control barriers for major public. events, sports, concerts, festivals, etc.
Specification

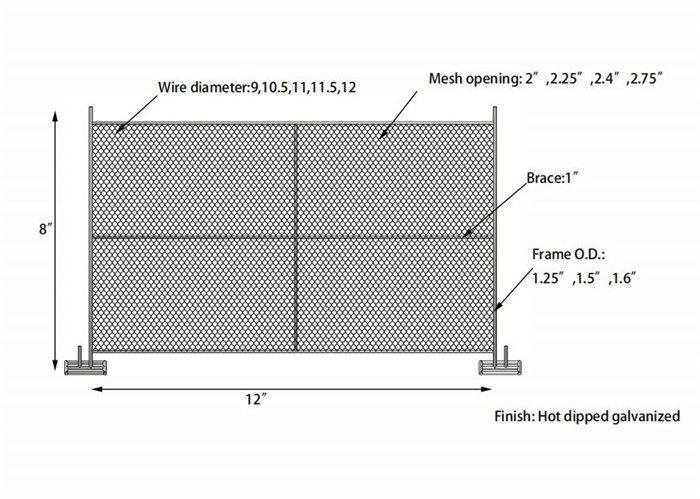

| Panel Size | 6'x9.5', 6'x10', 6'x12', 8'x10', 5'x9.5' or customized size |
| Frame tube | 32mm, 38mm, 42mm, 48mm, etc |
| Frame Thickness | 1.2mm, 1.5mm, 1.8mm, 2.0mm |
| Inner Tube | 32mm, 38mm, etc. |
| Inner tube thickness | 1.0mm, 1.2mm, 1.5mm |
| Mesh Spacing | 50x50mm, 60x60mm, etc. |
| Wire Diameter | 3.0mm, 3.2mm, 3.5mm, 4.0mm, etc |

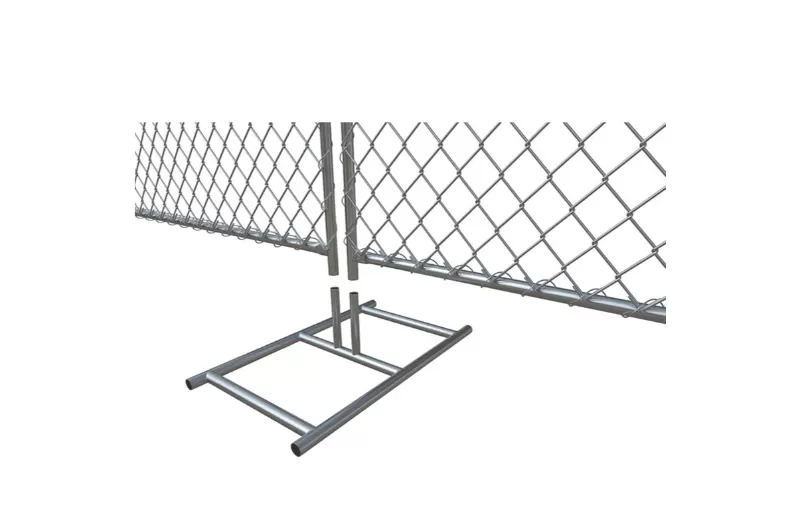

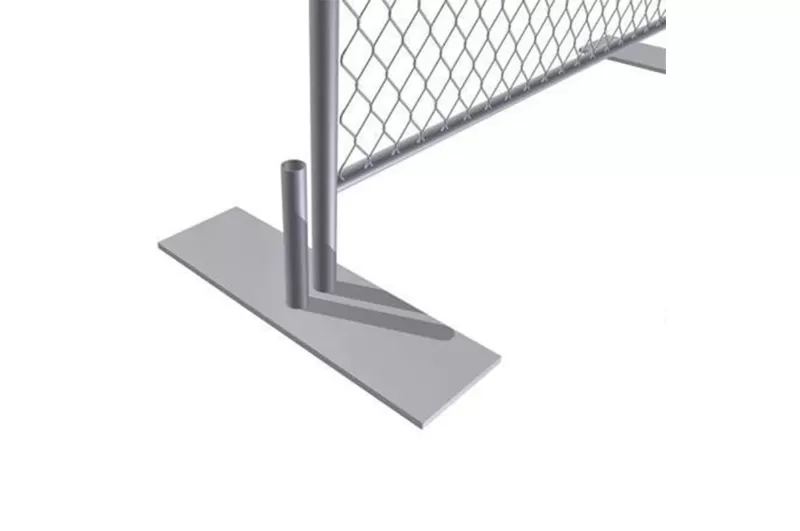

| Feet Size | 660x450mm, 600x400mm, etc |
| Surface Treatment | HDG material apply anti-rust paint then spray silver paint |
| Color | Zinc color, or as customers' request |
| Material | hot-dipped galvanized wire and pipe, zinc rate 40-60g/m2 or 200g/m2 |
